Interrupt Service Routine. More...

Collaboration diagram for ISR:

Data Structures
union	isr_eflags_t
	The EFLAGS register. More...

struct	isr_registers_t
	general purpose registers More...

struct	cpu_state_t
	The CPU's state when an interrupt occurs. More...

Macros
#define	IS_EXCEPTION(intr) ((intr) <= 0x1F)
	whether the given interrupt vector is an exception

#define	IS_IRQ(intr) ((intr) >= 0x20 && intr <= 0x2F)
	whether the given interrupt vector is an IRQ

#define	IS_SYSCALL(intr) ((intr) == 0x30)
	whether the given interrupt vector is the syscall

#define	ISR_EXCEPTION(ex) (0x00 + (ex))
	the interrupt vector for an exception

#define	ISR_IRQ(irq) (0x20 + (irq))
	the interrupt vector for an IRQ

#define	ISR_SYSCALL 0x30
	the interrupt vector for the syscall

Typedefs
typedef cpu_state_t (	isr_handler_t) (cpu_state_t *cpu)
	Handles a specific interrupt. More...

typedef uint32_t(*	isr_syscall_t) (uint32_t ebx, uint32_t ecx, uint32_t edx, uint32_t esi, uint32_t edi, cpu_state_t **cpu)
	Handles a specific syscall. More...

Functions
uint8_t	isr_enable_interrupts (uint8_t enable)
	Enables or disables interrupts. More...

uint8_t	isr_get_interrupts ()
	Returns whether interrupts are enabled or disabled. More...

void	isr_register_handler (size_t intr, isr_handler_t handler)
	Registers a handler to call whenever a given interrupt is fired. More...

void	isr_register_syscall (size_t id, void *syscall)
	Registers a syscall handler to call whenever a specified syscall is requested. More...

cpu_state_t *	isr_handle_interrupt (cpu_state_t *cpu)
	Handles all interrupts. More...

void	isr_dump_cpu (cpu_state_t *cpu)
	Dumps a CPU state. More...

static cpu_state_t *	isr_handle_syscall (cpu_state_t *cpu)
	Handles all syscalls. More...

void	isr_init ()
	Initializes syscalls and enables interrupts.

Variables
static isr_handler_t	handlers [IDT_ENTRIES] = {0}
	a table that associates interrupt vectors with handlers

static void *	syscalls [SYSCALL_NUMBER] = {0}
	a table that associates syscall IDs with handlers

Detailed Description

Interrupt Service Routine.

An ISR is responsible for handling IRQs, exceptions and syscalls. Here only one common ISR is used, isr_handle_interrupt. It dispatches interrupts to handlers (isr_handler_t) registered by isr_register_handler.

See also: isr_asm.S; http://www.lowlevel.eu/wiki/Teil_5_-_Interrupts; http://www.lowlevel.eu/wiki/ISR; http://wiki.osdev.org/Exceptions

Typedef Documentation

typedef cpu_state_t*(* isr_handler_t) (cpu_state_t *cpu)

Handles a specific interrupt.

Is registered with isr_register_handler().

Parameters

cpu	the CPU state

Returns: a (possibly altered) CPU state

See also: isr_handle_interrupt

Definition at line 90 of file isr.h.

typedef uint32_t(* isr_syscall_t) (uint32_t ebx, uint32_t ecx, uint32_t edx, uint32_t esi, uint32_t edi, cpu_state_t **cpu)

Handles a specific syscall.

Is registered with isr_register_syscall(). Unused parameters may be omitted because isr_register_syscall() works with void*. The parameters' and return value's types may differ from uint32_t, as long as they are not larger than 4 bytes (e.g. structs).

Parameters

ebx	the syscall's 1st parameter
ecx	the syscall's 2nd parameter
edx	the syscall's 3rd parameter
esi	the syscall's 4th parameter
edi	the syscall's 5th parameter
cpu	A reference to the CPU state / stack pointer. (This is a pointer to a pointer, so we can switch tasks from within a syscall!)

Returns: The syscall's return value. void is not allowed as type.

Definition at line 106 of file isr.h.

Function Documentation

void isr_dump_cpu ( cpu_state_t * cpu )

Dumps a CPU state.

The dump is logged.

Parameters

cpu	the CPU state to dump

Definition at line 123 of file isr.c.

uint8_t isr_enable_interrupts ( uint8_t enable )

Enables or disables interrupts.

Only acts if necessary.

Parameters

enable the new interrupt flag

Returns: interrupt flag before calling isr_enable_interrupts()

Definition at line 42 of file isr.c.

Here is the call graph for this function:

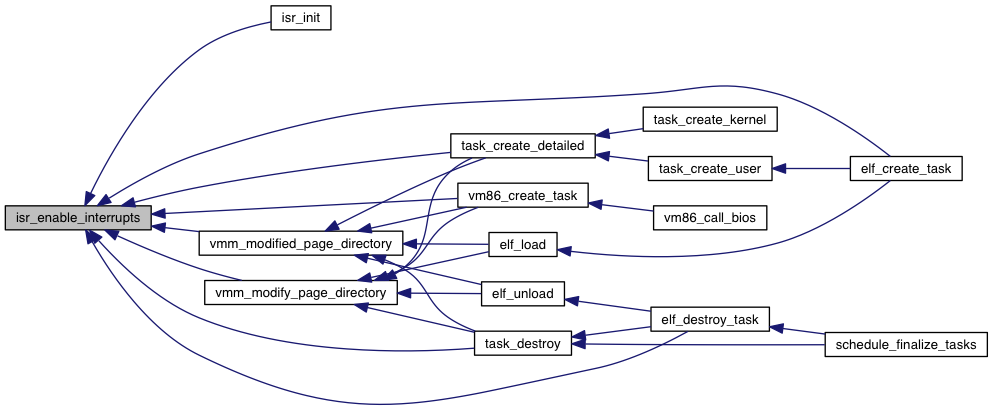

Here is the caller graph for this function:

uint8_t isr_get_interrupts ( )

Returns whether interrupts are enabled or disabled.

Returns: interrupt flag

Definition at line 55 of file isr.c.

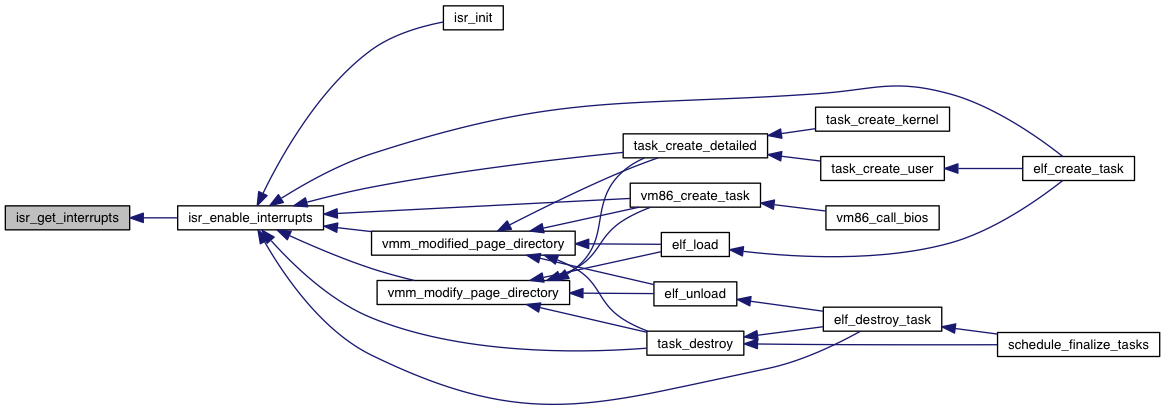

Here is the caller graph for this function:

cpu_state_t* isr_handle_interrupt ( cpu_state_t * cpu )

Handles all interrupts.

This function is called whenever an interrupt is fired. It distinguishes which action to perform (call a handler, panic etc.) and, for IRQs, notifies the PIC that this interrupt has been handled.

Parameters

cpu	cpu has two functions here - as a pointer (CPU state) and as a value (ESP): cpu points to the CPU state and is the ESP pushed in isr_asm.S (the former stack pointer which points to the current task's CPU state, beginning with GS).

Returns: The pointer returned by this function is a (possibly new) ESP if we want to switch tasks (then we need to make sure that ESP points to a valid CPU state).
If we don't want to switch tasks, we just return the ESP unchanged.

See also: isr_common in isr_asm.S

Definition at line 102 of file isr.c.

Here is the call graph for this function:

static cpu_state_t* isr_handle_syscall ( cpu_state_t * cpu )

static

Handles all syscalls.

Calls a syscall handler if registered.

Parameters

cpu	the current CPU state, see isr_handle_interrupt()

Returns: the new CPU state (if a task switch is desired)

Definition at line 139 of file isr.c.

Here is the caller graph for this function:

void isr_register_handler	(	size_t	intr,
		isr_handler_t	handler
	)

Registers a handler to call whenever a given interrupt is fired.

Parameters

intr	the interrupt vector that will be handled
handler	the function to call

Definition at line 66 of file isr.c.

Here is the caller graph for this function:

void isr_register_syscall	(	size_t	id,
		void *	syscall
	)

Registers a syscall handler to call whenever a specified syscall is requested.

Parameters

id	the ID of the syscall that will be handled
syscall	the function to call (this should be an isr_syscall_t but parameters can be omitted if desired, so we pass a void*)

Definition at line 80 of file isr.c.

Here is the caller graph for this function:
