ELF

Executable and Linking Format. More...

Collaboration diagram for ELF:

Data Structures
struct	elf_program_header_entry_t
	program header entries tell us how to load executables More...
struct	elf_header_t
	The ELF header at the start of every ELF file. More...

Macros
#define	MAGIC_0   0x7F
	magic value expected at the beginning of an ELF file
#define	MAGIC_1   'E'
	magic value expected at the beginning of an ELF file
#define	MAGIC_2   'L'
	magic value expected at the beginning of an ELF file
#define	MAGIC_3   'F'
	magic value expected at the beginning of an ELF file
#define	VERSION   1
	only ELF version 1 is supported (the current version)

Typedefs
typedef elf_header_t	elf_t
	an ELF file starts with the header

Enumerations
enum	elf_class { CLASS_32_BIT = 1, CLASS_64_BIT }
	32 or 64 bit
enum	elf_data { DATA_LITTLE_ENDIAN = 1, DATA_BIG_ENDIAN }
	little or big endian
enum	elf_type { TYPE_RELOCATABLE = 1, TYPE_EXECUTABLE, TYPE_SHARED, TYPE_CORE }
	object type
enum	elf_machine { MACHINE_X86 = 3 }
	targeted ISA, we are only interested in x86

Functions
static uint8_t	elf_check (elf_t *elf)
	Checks whether a pointer points to a valid ELF file for this OS. More...
void *	elf_load (elf_t *elf, page_directory_t *page_directory)
	Loads the segments of an ELF file into memory. More...
void	elf_unload (elf_t *elf, page_directory_t *page_directory)
	Frees the segments of an ELF file in memory. More...
task_pid_t	elf_create_task (elf_t *elf, size_t kernel_stack_len, size_t user_stack_len)
	Creates a user task running the code of an ELF file. More...
void	elf_destroy_task (task_pid_t pid)
	Destroys a user task running the code of an ELF file. More...

Detailed Description

Executable and Linking Format.

ELF files are used to execute external programs in user space.

See also

https://en.wikipedia.org/wiki/Executable_and_Linkable_Format

http://wiki.osdev.org/ELF

http://lowlevel.eu/wiki/ELF

http://www.linux-kernel.de/appendix/ap05.pdf

Function Documentation

static uint8_t elf_check ( elf_t *  elf )

static

Checks whether a pointer points to a valid ELF file for this OS.

Parameters

elf	the start address of the ELF file in memory

Returns

whether it is a valid ELF file

Definition at line 56 of file elf.c.

Here is the caller graph for this function:

task_pid_t elf_create_task	(	elf_t *	elf,
		size_t	kernel_stack_len,
		size_t	user_stack_len
	)

Creates a user task running the code of an ELF file.

Parameters

elf	the start address of the ELF file in memory
kernel_stack_len	number of bytes to allocate for the kernel stack
user_stack_len	number of bytes to allocate for the user stack

Returns

PID of the created ELF task

Definition at line 148 of file elf.c.

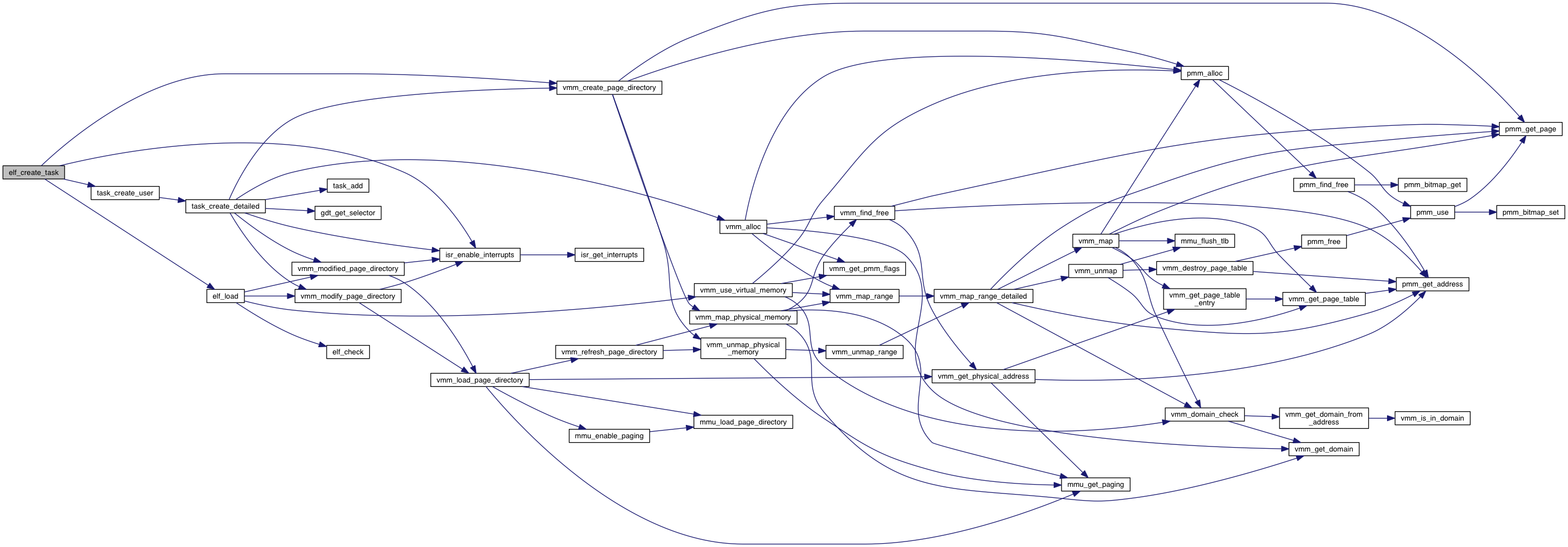

Here is the call graph for this function:

void elf_destroy_task

(

task_pid_t

pid

)

Destroys a user task running the code of an ELF file.

Parameters

pid	PID of the ELF task

Definition at line 166 of file elf.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void* elf_load	(	elf_t *	elf,
		page_directory_t *	page_directory
	)

Loads the segments of an ELF file into memory.

Parameters

elf	the start address of the ELF file in memory
page_directory	a page directory to map the segments into

Returns

the entry point as a virtual address

Definition at line 91 of file elf.c.

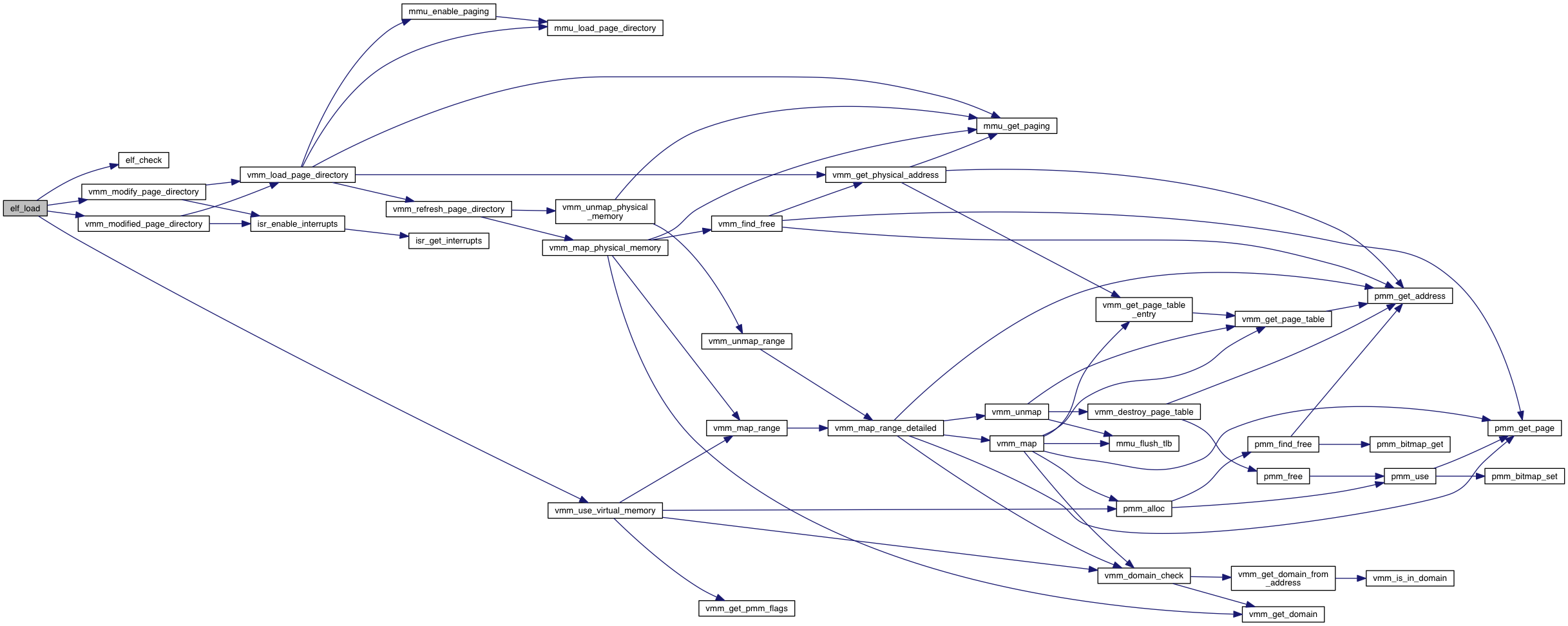

Here is the call graph for this function:

Here is the caller graph for this function:

void elf_unload	(	elf_t *	elf,
		page_directory_t *	page_directory
	)

Frees the segments of an ELF file in memory.

Parameters

elf	the start address of the ELF file in memory
page_directory	a page directory to unmap the segments from

Definition at line 127 of file elf.c.

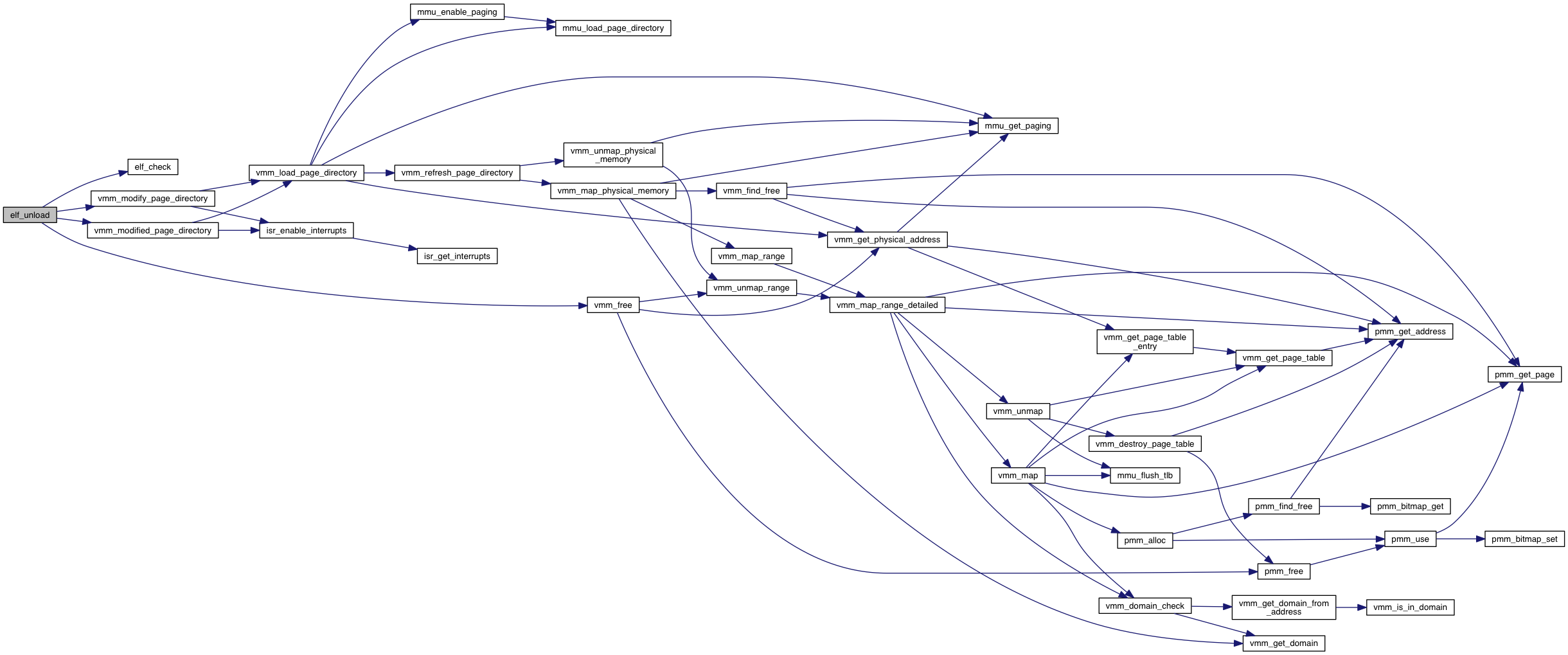

Here is the call graph for this function:

Here is the caller graph for this function:
